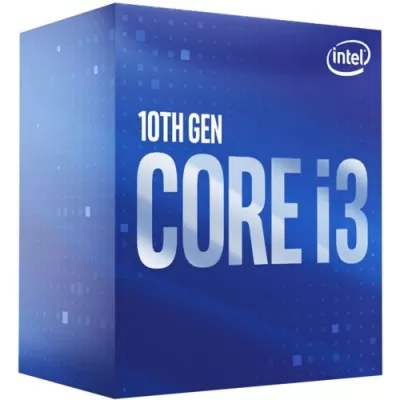

Intel Core i3 10105 10th Gen Comet Lake Processor
The Intel Core i3 10105 10th Gen Processor comes with3.70 GHz up to4.40 GHz timepiece speed, 4 cores and 8 vestments. This new 10th word Comet Lake microarchitecture is manufactured with the 14nm process that comes with four cores but lacks in Hyper Threading. As this chip is streamlined to the rearmost Memoirs modification, it nicely fits into any Intel 400 and 500 series motherboard.
Processor (6M Cache- up to 4.40 GHz) | |
Essentials | |
| Product Collection | 10th Generation Intel® Core™ i3 Processors |
| Code Name | Products formerly Comet Lake |
| Vertical Segment | Desktop |
| Processor Number | i3-10105 |
| Status | Launched |
| Launch Date | Q1’21 |
| Lithography | 14 nm |
| Use Conditions | PC/Client/Tablet |
CPU Specifications | |
| Total Cores | 4 |
| Total Threads | 8 |
| Max Turbo Frequency | 4.40 GHz |
| Intel® Turbo Boost Technology 2.0 Frequency‡ | 4.40 GHz |
| Processor Base Frequency | 3.70 GHz |
| Cache | 6 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 65 W |
Supplemental Information | |
| Embedded Options Available | No |
| Datasheet | View now |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-2666 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 41.6 GB/s |
| ECC Memory Supported ‡ | No |
Processor Graphics | |
| Processor Graphics ‡ | Intel® UHD Graphics 630 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.10 GHz |
| Graphics Video Max Memory | 64 GB |
| 4K Support | Yes | at 60Hz |
| Max Resolution (HDMI)‡ | 4096 x 2160@30Hz |
| Max Resolution (DP)‡ | 4096 x 2304@60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 4096 x 2304@60Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| # of Displays Supported ‡ | 3 |
| Device ID | 0x9BC8 |
Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 3 |
| PCI Express Configurations ‡ | Up to 1×16 | 2×8 | 1×8+2×4 |
| Max # of PCI Express Lanes | 16 |
| Package Specifications | |
| Sockets Supported | FCLGA1200 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2015C |
| TJUNCTION | 100°C |
| Package Size | 37.5mm x 37.5mm |
| Advanced Technologies | |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Thermal Velocity Boost | No |
| Intel® Turbo Boost Max Technology 3.0 ‡ | No |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel vPro® Platform Eligibility ‡ | No |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology ‡ | Yes |
| Intel® Stable Image Platform Program (SIPP) | No |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes with Intel® ME |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | No |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
