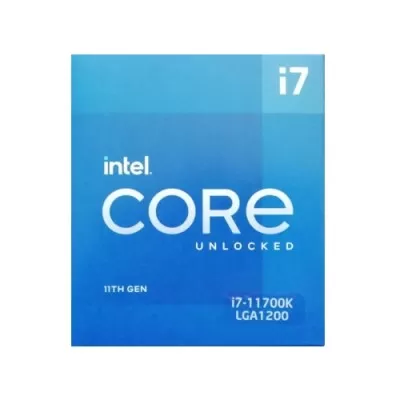

Intel 11th Gen Core i7-11700k Rocket Lake Processor
Intel’s bottommost Rocket Lake line of processors is each set to be launched on March 16. Until March 30, about its performance criteria Although we won’t get to know, several blurted marks from earlier have told us that chips analogous as the Intel Core i7-11700K can hold their own against also-specced AMD counterparts. The Intel Core i7-11700K has 16 MB of L3 cache and operates at3.6 GHz by dereliction, but can boost up to 5 GHz, depending on the workload.
This Intel 11th Gen Core i7-11700k Rocket Lake Processor featured with CPU Cores 8, CPU Vestments 16, Turbo (8 Cores)4.60 GHz, Core architecture normal. Also used Intel UHD Graphics 750, that featured with GPU frequency 350 MHz, GPU (Turbo)1.30 GHz, Generation 12, DirectX Version12.1, Prosecution units 32, Shader 256, Max. GPU Memory 64 GB, Max. displays 3, Technology 14 nm.
Intel is erecting the Core i7-11700K on a 14 nm product process, the transistor count is unknown. You may freely adjust the uncorked multiplier on Core i7-11700K, which simplifies overclocking greatly, as you can easily phone in any overclocking frequency.
Intel® Core™ i7-11700K Processor (16M Cache- up to 5.00 GHz) | |
| Essentials | |
| Product Collection | 11th Generation Intel® Core™ i7 Processors |
| Code Name | Products formerly Rocket Lake |
| Vertical Segment | Desktop |
| Processor Number | i7-11700K |
| Status | Launched |
| Launch Date | Q1’21 |
| Lithography | 14 nm |
| Use Conditions | PC/Client/Tablet |
CPU Specifications | |
| Total Cores | 8 |
| Total Threads | 16 |
| Max Turbo Frequency | 5.00 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.00 GHz |
| Intel® Turbo Boost Technology 2.0 Frequency‡ | 4.90 GHz |
| Processor Base Frequency | 3.60 GHz |
| Cache | 16 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 125 W |
| Configurable TDP-down Frequency | 3.10 GHz |
| Configurable TDP-down | 95 W |
| Supplemental Information | |
| Embedded Options Available | No |
Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-3200 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 50 GB/s |
| ECC Memory Supported ‡ | No |
| Processor Graphics | |
| Processor Graphics ‡ | Intel® UHD Graphics 750 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.30 GHz |
| Graphics Video Max Memory | 64 GB |
| Execution Units | 32 |
| 4K Support | Yes | at 60Hz |
| Max Resolution (HDMI)‡ | 4096×2160@60Hz |
| Max Resolution (DP)‡ | 5120 x 3200 @60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @60Hz |
| DirectX* Support | 12.1 |
| OpenGL* Support | 4.5 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| # of Displays Supported ‡ | 3 |
| Device ID | 0x4C8A |
| OpenCL* Support | 3 |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 4 |
| PCI Express Configurations ‡ | Up to 1×16+1×4 | 2×8+1×4 | 1×8+3×4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1200 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2019A |
| TJUNCTION | 100°C |
| Package Size | 37.5 mm x 37.5 mm |
Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 2 |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Thermal Velocity Boost | No |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel vPro® Platform Eligibility ‡ | Yes |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 | Intel® AVX-512 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology ‡ | Yes |
| Intel® Stable Image Platform Program (SIPP) | Yes |
Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | No |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
